Millenium Packaging

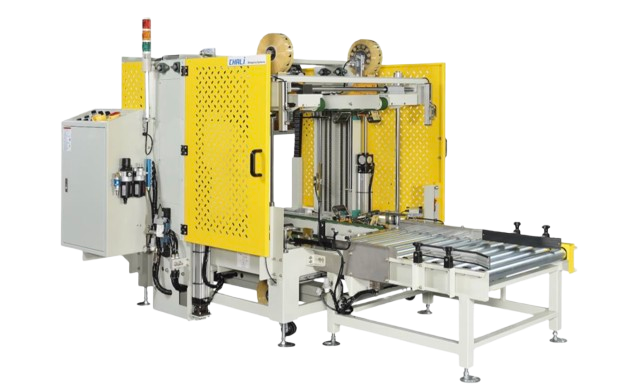

Carton Taping Machine

A carton taping machine or Carton Sealing Machine is an automated or semi-automated Packing Machine used to seal carton boxes with adhesive tape, typically in industrial or packaging settings. It helps streamline the packaging process by efficiently applying BOPP tape to both the top and bottom of cartons sealing the flaps in a uniform and consistent manner.

These machines come in various types, including side belt, top and bottom belt, and random case sealers, designed to handle different sizes of boxes. Carton taping machine enhances productivity by reducing packing time, reduce labour costs, and ensure secure and professional-looking packaging.

Advantages/Features of Carton taping machine

– Speed up Sealing Process
– Optimizes Tape Usage, reducing wastage
– Can handle various carton sizes with adjustable settings
– Can be integrated with conveyor system for seamless packaging process.

Model

MPS-CS040MA (6050)

Function

Top & Bottom Drive

Power Supply

1 Phase 220V 50 Hz 200W

Conveying Belt Speed

20 mtrs/Min.

Min. Carton Size

W 150mm x H 150mm x L No Bar

Max. Carton Size

W 500mm x H 500mm x L No Bar

Width of Adhesive Tape

48/60/72 mm

Working Height

635mm ~ 780mm (Adjustable)

Motor Power

90W x 2

Tape Used

BOPP/Waterfree/PVC

Dimensions (mm)

L 1755mm x W 740 x H (1445~1605)

Conveyor Carrying Capacity

Upto 18 Kgs.

Model

MPS-CS040MA (5050)

Function

Side Drive

Power Supply

1 Phase 220V 50 Hz 200W

Conveying Belt Speed

20 mtrs/Min.

Min. Carton Size

W 110mm x H 140mm x L No Bar

Max. Carton Size

W 500mm x H 500mm x L No Bar

Width of Adhesive Tape

48/60/72 mm

Working Height

635mm ~ 780mm (Adjustable)

Motor Power

90W x 2

Tape Used

BOPP/Waterfree/PVC

Dimensions (mm)

L 1755mm x W 740 x H (1445~1605)

Conveyor Carrying Capacity

Upto 18 Kgs.

Model

MPS-CS040MA-HD

Function

Top & Bottom Drive

Power Supply

1 Phase 220V/380V 50 Hz 200W
3 Phase 380V/415V/440V 50/60 Hz

Conveying Belt Speed

20 mtrs/Min.

Min. Carton Size

W 150mm x H 130mm x L 150mm ~ No Bar

Max. Carton Size

W 500mm x H 500mm x L No Bar

Width of Adhesive Tape

48/60/72 mm

Working Height

570mm ~ 770mm (Adjustable)

Motor Power

200W x 2

Tape Used

BOPP/Waterfree/PVC

Dimensions (mm)

L 1755mm x W 740 x H (1445~1605)

Conveyor Carrying Capacity

Upto 30 Kgs.

Power Consumption

2.25 KW

Model

MPS-CS040SA

Function

Side Drive

Power Supply

1 Phase 220V/230V/240V 50 Hz 200W
3 Phase 380V/415V/440V 50/60 Hz

Conveying Belt Speed

20 mtrs/Min.

Min. Carton Size

W 150mm x H 150mm x L 150mm ~ No Bar

Max. Carton Size

W 500mm x H 500mm x L No Bar

Width of Adhesive Tape

48/60/72 mm

Working Height

570mm ~ 770mm (Adjustable)

Motor Power

90W x 2

Tape Used

BOPP/Waterfree/PVC

Dimensions (mm)

L 1250mm x W 910 mm x H 1315mm

Conveyor Carrying Capacity

Upto 30 Kgs.

Power Consumption

2.25 KW

Compressed Air

6 KG/cm2

Model

MPS-CS040MA-FC

Function

Side Drive

Power Supply

1 Phase 220V/230V/240V 50 Hz 200W

Conveying Belt Speed

20 mtrs/Min.

Min. Carton Size

W 150mm x H 150mm x L 150mm ~ No Bar

Max. Carton Size

W 500mm x H 500mm x L No Bar

Width of Adhesive Tape

48/60/72 mm

Working Height

570mm ~ 770mm (Adjustable)

Motor Power

90W x 2

Tape Used

BOPP/Waterfree/PVC

Dimensions (mm)

L 1900mm x W 960 mm x H 1600mm

Conveyor Carrying Capacity

Upto 30 Kgs.

Power Consumption

2.25 KW

Compressed Air

6 KG/cm2

Model

MPS-CS040SA-FC

Function

Side Drive

Power Supply

1 Phase 220V/230V/240V 50 Hz 200W

Conveying Belt Speed

20 mtrs/Min.

Min. Carton Size

W 150mm x H 150mm x L 150mm ~ No Bar

Max. Carton Size

W 500mm x H 500mm x L No Bar

Width of Adhesive Tape

48/60/72 mm

Working Height

570mm ~ 770mm (Adjustable)

Motor Power

90W x 2

Tape Used

BOPP/Waterfree/PVC

Dimensions (mm)

L 1985mm x W 950 mm x H 1625mm

Conveyor Carrying Capacity

Upto 30 Kgs.

Power Consumption

2.25 KW

Compressed Air

6 KG/cm2
