Automatic Strapping Machine Latest

Automatic Strapping machine's

An Automatic Strapping Machine is used in packaging lines to apply plastic straps (typically polypropylene or polyester) around packages, boxes, or pallets to secure them for storage or shipment. It automates the strapping process, improving speed and consistency while reducing manual labor.

Advantages/Features of Automatic Strapping Machine

Fully automatic operation: Detects the package and applies the strap without operator involvement.
High-speed performance: Can strap dozens of packages per minute depending on model.
Adjustable tension control: Ensures secure strapping without damaging the product.
Loop ejector / Jam prevention: Helps maintain smooth operation.
Compatible strap widths: Usually from 5 mm to 15 mm.
PLC controlled: Easy to adjust settings.
Arch size customization: To fit different package sizes.

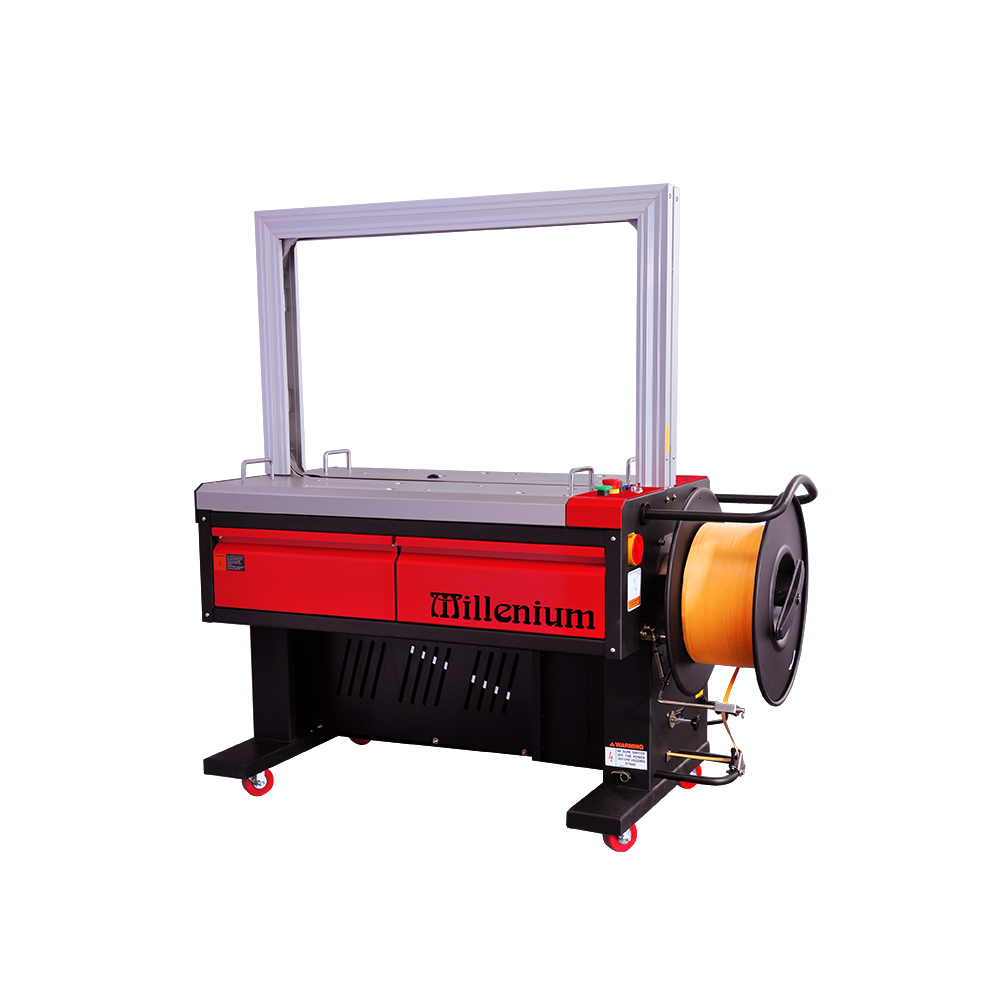

Model

Automatic Strapping Machine – MPS 010FASTA1

Arch Size

800W X 600H mm (Standard)

Power Supply

3, 415V, 50 Hz, 850 watts

Strap Cycle Speed

2.5Sec./Cycle

Tension Strength

Max. 70 kgs. (Adjustable)

Strap Width

9/12 mm –to be specified at the time of placing the order

Sealing Method

Heat Sealing

Table Height

820 mm

Control

High Precision Reliable – Micro Processor Control & PCB

Automatic Strapping Machine – MPS 010FASTA1

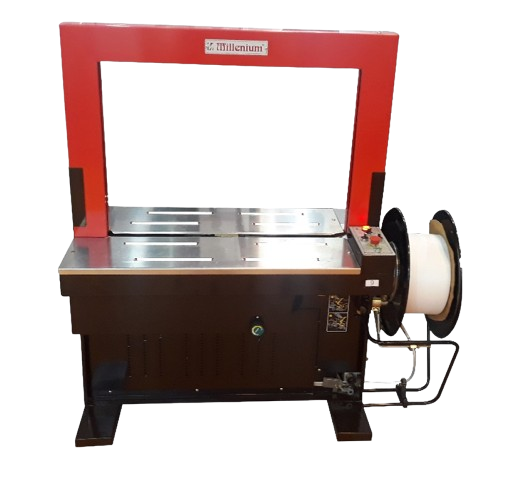

Model

Automatic Strapping Machine – MPS 010FASTA1R

Arch Size

800W X 600H mm (Standard)

Power Supply

3, 415V, 50 Hz, 850 watts

Strap Cycle Speed

2.5Sec./Cycle

Tension Strength

Max. 70 kgs. (Adjustable)

Strap Width

9/12 mm –to be specified at the time of placing the order

Sealing Method

Heat Sealing

Table Height

820 mm

Control

High Precision Reliable – Micro Processor Control & PCB

Automatic Strapping Machine – MPS 010FASTA1R

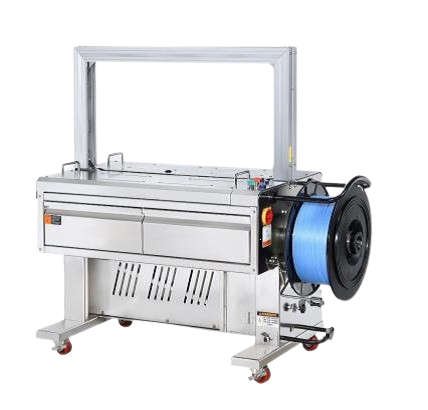

Model

Automatic Strapping Machine - Stainless Steel MPS 010FASTA1SS

Arch Size

850W x 600H mm (Standard)

Strap Cycle Speed

28 Cycles / 60hz / per Min.
26 Cycles / 50hz / per Min.

Tension Strength

70Kgs / Max.

Table Height

810mm

Strap Width

9~15.5mm

Sealing Method

Heat Sealing

Power Supply

110/220V 50/60HZ 1PH.

Automatic Strapping Machine - Stainless Steel MPS 010FASTA1SS

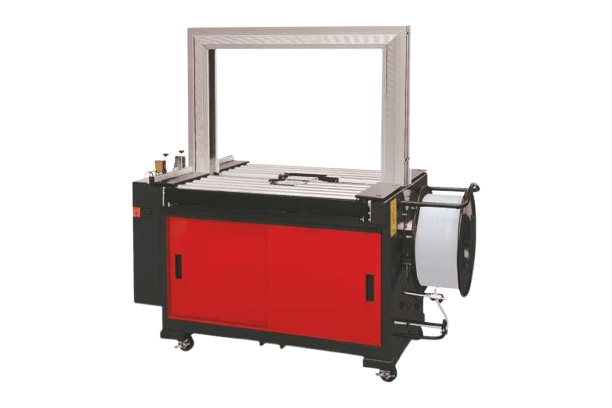

Fully Automatic Strapping Machine Online - Power Roller Table

Model

Fully Automatic Strapping Machine Online - Power Roller Table

Arch Size

850W x 600H mm (Standard)

Power Supply

110/220V 50/60 Hz 1Ph 220/380V 50/60 Hz 3 Ph

Strap Cycle Speed

2.5 Sec. / Cycle

Tension Strength

Max. 70 Kgs.

Strap Width

9~15.5 mm

Sealing Method

Heat Sealing

Dimension

1550W x 800D x 1470H mm

Table Height

810 mm

Machine Weight

330 Kgs.

Gross Weight

430 Kgs

Power Belt Speed

15M/50Hz Per Min.

Package Size

200-520W, 30-560H mm

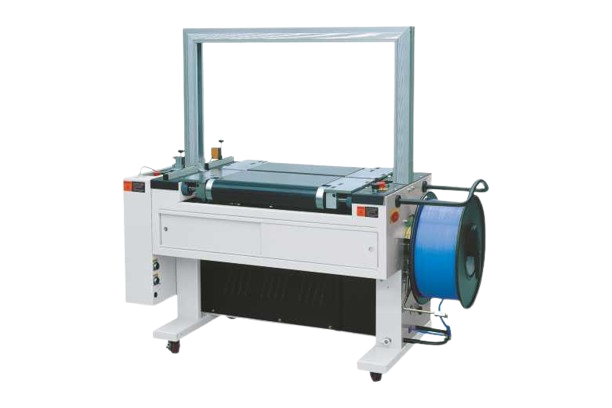

Fully Automatic Strapping Machine Online - Power Belt Table

Model

Fully Automatic Strapping Machine Online - Power Belt Table

Arch Size

850W x 600H mm (Standard)

Power Supply

110/220V 50/60 Hz 1PH 220/380V 50/60 Hz 3 PH

Strap Cycle Speed

2.5 Sec. / Cycle

Tension Strength

Max. 70 Kgs. (Adjustable-Mechanically)

Strap Width

9~15.5 mm

Sealing Method

Heat Sealing

Dimension

1150W x 640 D x 1550 H mm

Table Height

820 mm

Machine Weight

307 Kgs.

Gross Weight

402 Kgs

Power Belt Speed

17M/50Hz Per Min.

Package Size

200-520W, 30-560H mm

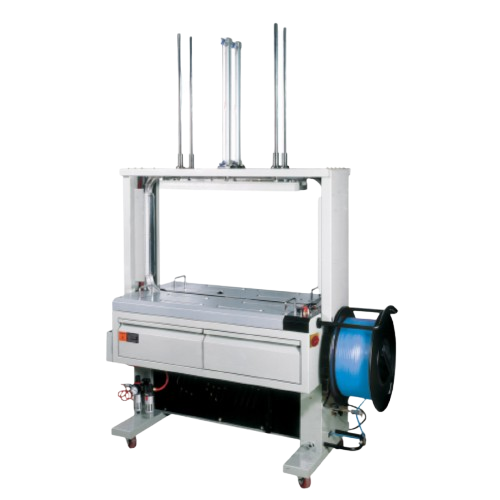

Model

Automatic Strapping Machine (Penumatic Pressing)

Arch Size

850W x 600H mm (Standard)

Strap Cycle Speed

28 Cycles / 60hz / per Min.
26 Cycles / 50hz / per Min.

Tension Strength

70Kgs / Max.

Table Height

810mm

Strap Width

9~15.5mm

Sealing Method

Heat Sealing

Power Supply

110/220V 50/60HZ 1PH.
220/380V 50/60HZ 3PH

Dimensions

1400L x 640W x 2068H mm

Pressure

5kg/cm 2

Stroke

550mm

Cylinder

Inner Diameter: φ40

Automatic Strapping Machine (Penumatic Pressing)

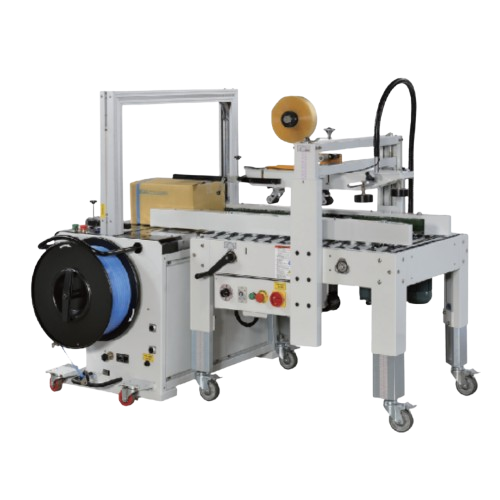

Model

MPS 010 FA - Combo | STA 1 + CX 2ex

Power Supply

3Ø, 380V, 50 Hz, 1.5 Kw

Belt Speed (Carton Sealer)

20 Meters / Min.

Packaging Speed

8 Cartons/Min.

Packaging Size

L-300~700 X W-200~500 X 150~500mm

Carton Weight

5-40 Kgs

PP Strap

9/12/15mm - to be specified at the time of placing the order

Tension Adjustment

5~70 Kgf

Adhesive Tape

48 / 60 / 72 mm

Machine Weight

450 Kgs

Machine Dimension

Please refer Drawings attached

MPS 010 FA - Combo | STA 1 + CX 2ex

Model

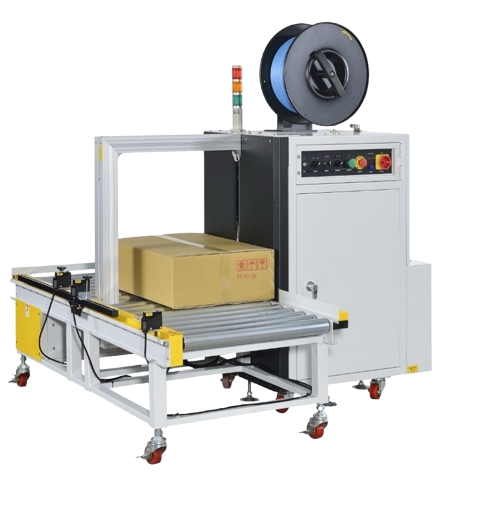

Automatic Strapping Machine – Side Sealing Type

Arch Size

600W x 850H mm (Standard)

Strap Cycle Speed

28 Cycles / per Min.

Tension Strength

70Kgs / Max.

Strap Width

9~15mm

Sealing Method

Heat Sealing

Power Supply

110/220V 50/60HZ 1PH.
220/380V 50/60HZ 3PH

Dimensions

1400L x 640W x 1740H mm3

Automatic Strapping Machine – Side Sealing Type

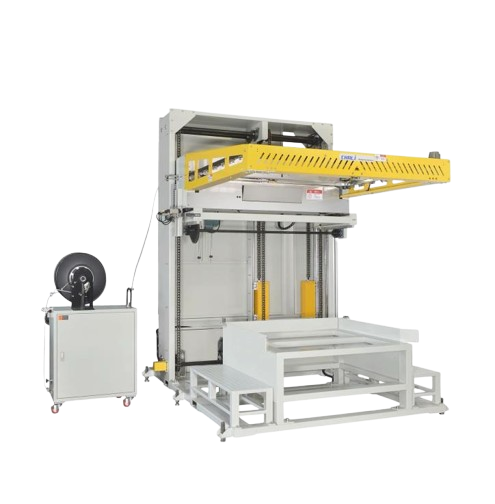

Fully Automatic Strapping Machine – Pallets

Model

Fully Automatic Strapping Machine – Pallets

Arch Size

1300W x 2500H mm (customization)

Strap Cycle Speed

3 sec. / cycles (60HZ) (Depends on the package size)

Tension Strength

70Kgs / Max.

Strap Width

12~19mm

Sealing Method

Heat Sealing

Table Height

310MM

Sealing point

547MM

Arch cylinder stroke

250MM

Power Supply

110/220V 50/60HZ 1PH.
220/380/415V 50/60HZ 3PH

Dimensions

3446W x 800D x 2935H mm

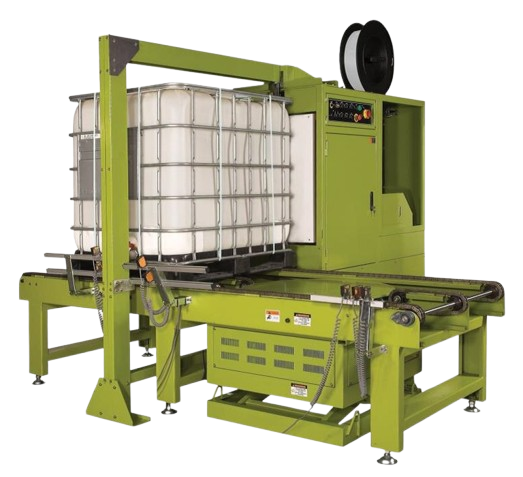

Fully Automatic Horizontal Strapping Machine – Pallets

Model

Fully Automatic Horizontal Strapping Machine – Pallets

Arch Size

W1400XD1300XH1500MM

Tension Strength

70Kgs / Max.

Strap Width

9~15.5mm

Sealing Method

Heat Sealing

Table Height

H650mm (customization)

Power Supply

110/220V 50/60HZ 1PH.
220/380V 50/60HZ 3PH

Automatic Strapping Machine – Double Head

Model

Automatic Strapping Machine – Double Head

Arch Size

1000W x 2800H mm (Customize)

Strap Cycle Speed

3 sec in a dry cycle (60HZ)

Tension Strength

70Kgs / Max.

Strap Width

12, 15, or 19 mm

Sealing Method

Heat Sealing

Power Supply

220/380V 50/60HZ 3PH

Ask for a Quote?

just fill the form. we will get back to you as soon as possible!
